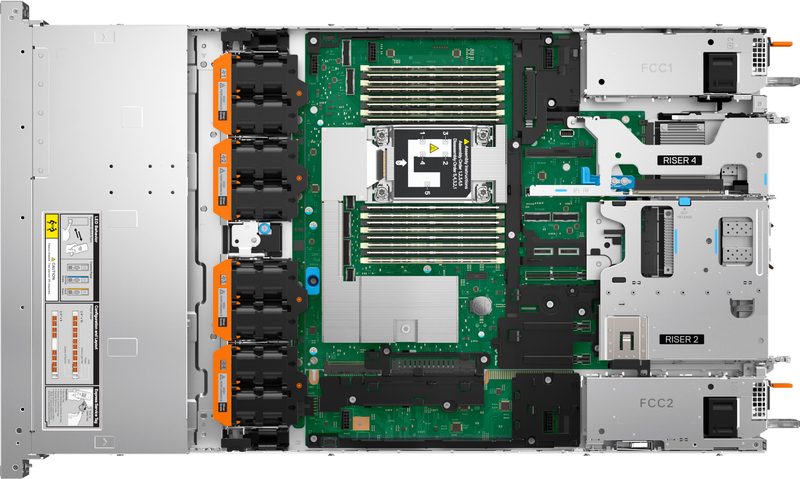

DELL PowerEdge R470 server 1.92 TB Rack (1U) Intel Xeon 6 6511P 2.3 GHz 128 GB DDR5-SDRAM 800 W
DellModel R470272_6511P432
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compatible operating systems
- Canonical Ubuntu Server LTS RedHat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXiWindows ServerWindows Server Datacenter
- Packaging content
- Riser Config 6, 2x16 FH Slots (Gen5), 1x16 Onboard OCP
- Ethernet LAN (RJ-45) ports
- 1
- Open Compute Project (OCP)
- OCP 3.0 NIC
Overview
DELL PowerEdge R470 server 1.92 TB Rack (1U) Intel Xeon 6 6511P 2.3 GHz 128 GB DDR5-SDRAM 800 W is a Dell workstations & server with a open compute project (ocp) of OCP 3.0 NIC and a storage drive adapter type of 2.5" - 3.5". The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Open Compute Project (OCP) is OCP 3.0 NIC. Storage drive adapter type is 2.5" - 3.5". Storage drive adapter included is Yes. Ethernet LAN (RJ-45) ports is 1. Compatible operating systems is Canonical Ubuntu Server LTS RedHat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXiWindows ServerWindows Server Datacenter. Packaging content is Riser Config 6, 2x16 FH Slots (Gen5), 1x16 Onboard OCP. Power supply is 800 W. Memory data transfer rate is 6400 MT/s. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compatible operating systems | Canonical Ubuntu Server LTS RedHat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXiWindows ServerWindows Server Datacenter |
|---|---|
| Packaging content | Riser Config 6, 2x16 FH Slots (Gen5), 1x16 Onboard OCP |
| Ethernet LAN (RJ-45) ports | 1 |
| Open Compute Project (OCP) | OCP 3.0 NIC |
| Power supply input voltage | 100 - 240 V |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies installed | 2 |
| Power supply | 800 W |
| Thermal Design Power (TDP) | 150 W |
| Width | 482 mm |
|---|---|
| Height | 42.8 mm |
| RAID support | Yes |
|---|
| Remote administration | iDRAC10 Enterprise 17G with OpenManage Enterprise Advance Plus |
|---|---|
| Bytes per sector | 512e |
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Data transfer rate | 6 Gbit/s |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Buffered memory type | Registered (buffered) |
|---|---|
| Drive writes per day (DWPD) | 3 |
| Ethernet interface type | 10 Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel E610-XAT4 |
| Operating system installed | No |
|---|
| Total storage capacity | 1.92 TB |
|---|---|
| Supported RAID controllers | PERC H965i |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| Optical drive type | No |
| Hot-Plug support | Yes |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
| Internal memory | 128 GB |
|---|---|
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 6400 MHz |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 4 x 32 GB |
| Memory slots | 16x DIMM |
| Memory ranking | 2 |
| Memory data transfer rate | 6400 MT/s |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Xeon 6 |
| Processor model | 6511P |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 2.3 GHz |
| Processor cache | 72 MB |
| Number of processors installed | 1 |
| Chassis type | Rack (1U) |
|---|---|
| Product colour | Grey |
| Bezel | Yes |
