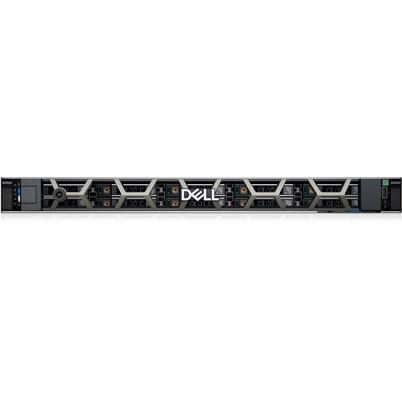

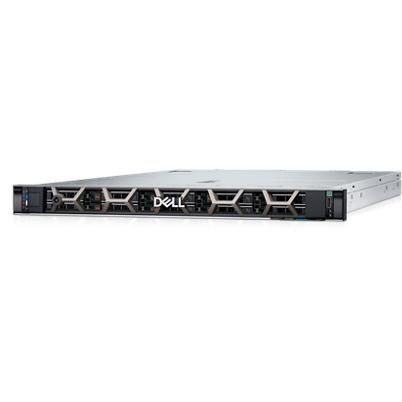

DELL PowerEdge R660 server 800 GB Rack (1U) Intel® Xeon® Gold 6430 2.1 GHz 128 GB DDR5-SDRAM 700 W
DellModel EMEA_PER6609A
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compatible operating systems
- Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
- Packaging content
- Riser Config 1, Low Profile, 3x16 LP Slots (Gen4) ReadyRails Sliding Rails Without Cable Management Arm or Strain Relief Bar
- Ethernet LAN (RJ-45) ports
- 2
- Open Compute Project (OCP)
- NIC 3.0
Overview
DELL PowerEdge R660 server 800 GB Rack (1U) Intel® Xeon® Gold 6430 2.1 GHz 128 GB DDR5-SDRAM 700 W is a Dell workstations & server with a open compute project (ocp) of NIC 3.0 and a supported storage drives form factor (rear) of 2.5". The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Open Compute Project (OCP) is NIC 3.0. Supported storage drives form factor (rear) is 2.5". Ethernet LAN (RJ-45) ports is 2. 80 PLUS certification is 80 PLUS Titanium. Compatible operating systems is Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi. Packaging content is Riser Config 1, Low Profile, 3x16 LP Slots (Gen4) ReadyRails Sliding Rails Without Cable Management Arm or Strain Relief Bar. Power supply is 700 W. Memory data transfer rate is 5600 MT/s. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 Years ProSpt. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
|---|---|
| Packaging content | Riser Config 1, Low Profile, 3x16 LP Slots (Gen4) ReadyRails Sliding Rails Without Cable Management Arm or Strain Relief Bar |
| Ethernet LAN (RJ-45) ports | 2 |
| Open Compute Project (OCP) | NIC 3.0 |
| Supported storage drives form factor (rear) | 2.5" |
|---|
| Redundant power supply (RPS) support | Yes |
|---|---|
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power cable length | 2 m |
| Power supply | 700 W |
| Thermal Design Power (TDP) | 270 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Internal drive bays | 10 |
|---|
| Width | 482 mm |
|---|---|
| Height | 42.8 mm |
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Non-operating altitude | 0 - 12000 m |
| Supported storage drive interfaces | SAS, Serial ATA |
|---|---|
| RAID support | Yes |
| Remote administration | iDRAC9 Enterprise 16G |
|---|---|
| Bytes per sector | 512e |
| SFP/SFP+ slots quantity | 2 |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Fiber optic connector | SFP28 |
| USB 2.0 ports quantity | 2 |
| Data transfer rate | 24 Gbit/s |
| Power cables quantity | 2 |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Buffered memory type | Registered (buffered) |
|---|---|
| Drive writes per day (DWPD) | 3 |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Broadcom 5720, Broadcom 57414 |
| Operating system installed | No |
|---|
| Total storage capacity | 800 GB |
|---|---|
| SSD size | 2.5" |
| Supported RAID controllers | PERC H755 |
| Number of SSDs installed | 1 |
| SSD capacity | 800 GB |
| SSD interface | Serial Attached SCSI (SAS) |
| Optical drive type | No |
| Hot-Plug support | Yes |
| Internal memory | 128 GB |
|---|---|
| Maximum internal memory supported by processor | 4 TB |
| Memory clock speeds supported by processor | 4400 MHz |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 8 x 16 GB |
| Memory slots | 32x DIMM |
| Maximum internal memory | 8 TB |
| Memory ranking | 1 |
| Memory data transfer rate | 5600 MT/s |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® Gold |
| Processor generation | Intel Xeon Scalable 4th Gen |
| Processor model | 6430 |
| Processor cores | 32 |
| Processor threads | 64 |
| Processor boost frequency | 3.4 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 60 MB |
| Number of processors installed | 2 |
| Chassis type | Rack (1U) |
|---|---|
| Product colour | Black |
| Bezel | Yes |
Warranty
3 Years ProSpt
