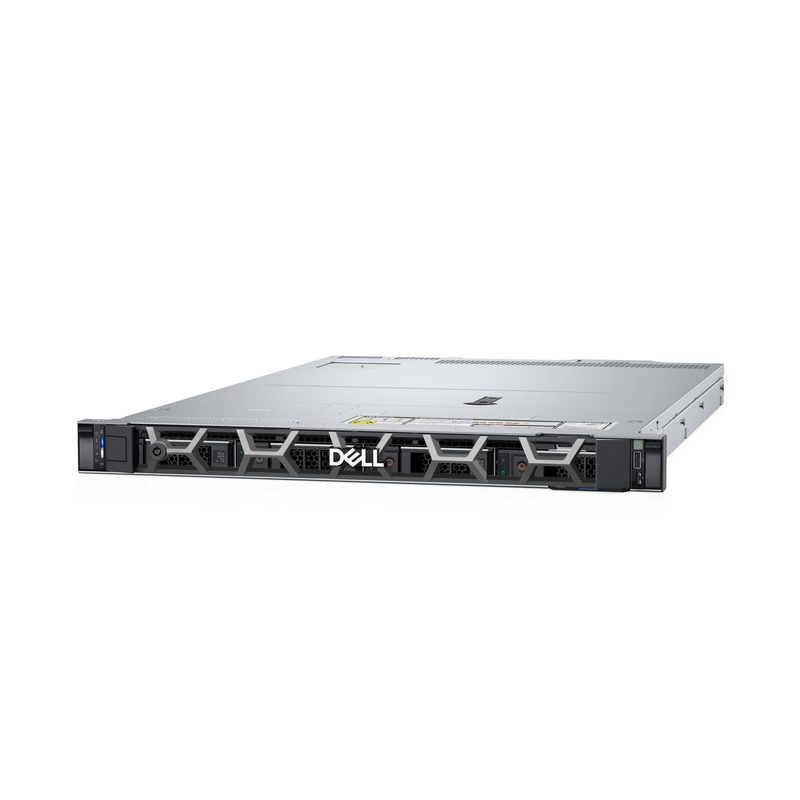

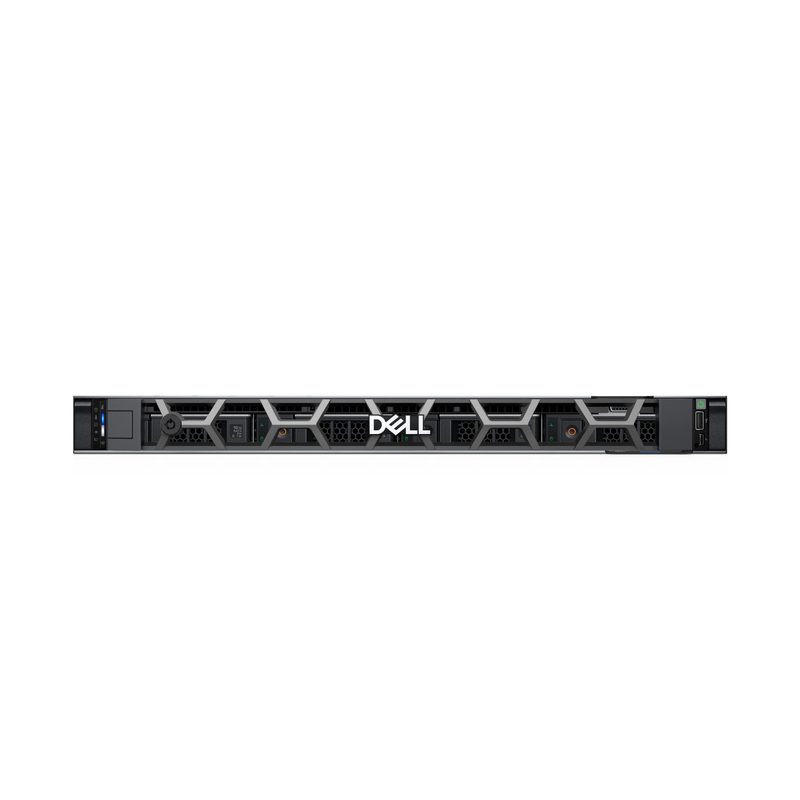

DELL PowerEdge R660XS server 960 GB Rack (1U) Intel Xeon Silver 4514Y 2 GHz 32 GB DDR5-SDRAM 800 W
DellModel 210-BHRM-YOSM
Image 1 of 3
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compatible operating systems
- Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi
- Ethernet LAN (RJ-45) ports
- 4
- Total carbon footprint (kg of CO2e)
- 6561
- Total carbon emissions, standard deviation (kg of CO2e)
- 3677
Overview
DELL PowerEdge R660XS server 960 GB Rack (1U) Intel Xeon Silver 4514Y 2 GHz 32 GB DDR5-SDRAM 800 W is a Dell workstations & server with a i/o ports of PCIe Riser Config 5 1 xOCP 3.0 + 1 x16LP (Gen4) + 1 x8 LP (Gen5) and a ethernet lan (rj-45) ports of 4. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
I/O ports is PCIe Riser Config 5 1 xOCP 3.0 + 1 x16LP (Gen4) + 1 x8 LP (Gen5). Ethernet LAN (RJ-45) ports is 4. Total carbon footprint (kg of CO2e) is 6561. Total carbon emissions, standard deviation (kg of CO2e) is 3677. Carbon emissions, manufacturing (kg of CO2e) is 459.27. Carbon emissions, logistics (kg of CO2e) is 131.22. Carbon emissions, energy usage (kg of CO2e) is 5970.51. Carbon emissions, end-of-life (kg of CO2e) is 0. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Total carbon footprint (kg of CO2e) | 6561 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 3677 |
| Carbon emissions, manufacturing (kg of CO2e) | 459.27 |
| Carbon emissions, logistics (kg of CO2e) | 131.22 |
| Carbon emissions, energy usage (kg of CO2e) | 5970.51 |
| Carbon emissions, end-of-life (kg of CO2e) | 0 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 590.49 |
| PAIA version | 1.3.2, 2022 |
| Power supply input voltage | 200 - 240 V |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power supply | 800 W |
| Width | 434 mm |
|---|---|
| Height | 42.8 mm |
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| RAID support | Yes |
|---|---|
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Remote administration | iDRAC9 Enterprise |
|---|---|
| Supported SSD sizes | 2.5" |
| Bytes per sector | 512 |
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory supported by processor | 512 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 1 TB |
| Memory data transfer rate | 5600 MT/s |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Buffered memory type | Registered (buffered) |
|---|---|
| Target workload | Read Intensive (RI) |
| Drive writes per day (DWPD) | 1 |
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Broadcom 5720 |
| Operating system installed | No |
|---|
| Total storage capacity | 960 GB |
|---|---|
| SSD size | 2.5" |
| Number of SSDs supported | 8 |
| Supported RAID controllers | PERC H755 |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Optical drive type | No |
| Hot-Plug support | Yes |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Xeon Silver |
| Processor model | 4514Y |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor boost frequency | 3.4 GHz |
| Processor frequency | 2 GHz |
| Processor cache | 30 MB |
| Number of processors installed | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| USB 2.0 ports quantity | 2 |
| Data transfer rate | 6 Gbit/s |
| I/O ports | PCIe Riser Config 5 1 xOCP 3.0 + 1 x16LP (Gen4) + 1 x8 LP (Gen5) |
| On-board graphics card | No |
|---|
| Chassis type | Rack (1U) |
|---|---|
| Product colour | Black |
| Rack rails | Yes |
| Bezel | Yes |
