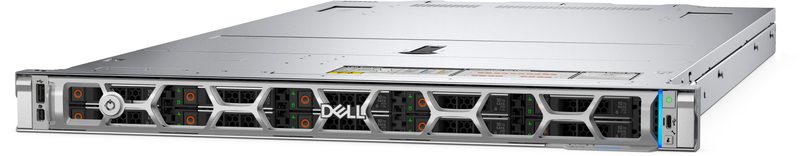

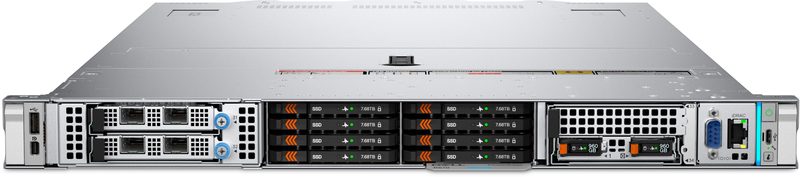

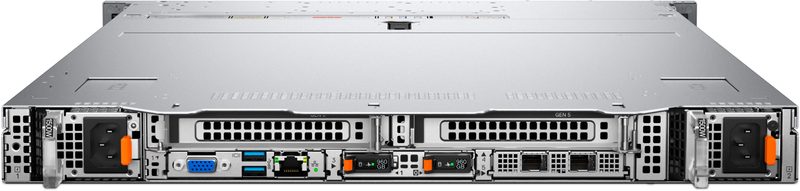

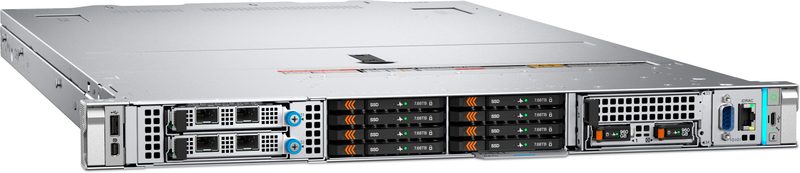

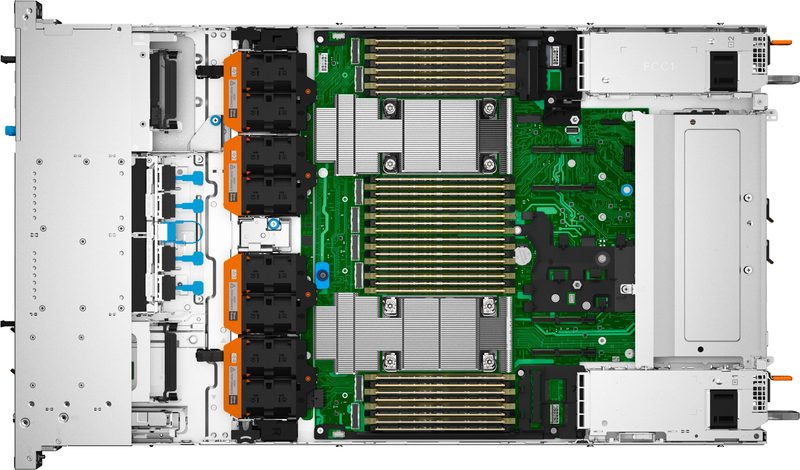

DELL PowerEdge R670 server 480 GB Rack (1U) Intel Xeon 6 6505P 2.2 GHz 64 GB DDR5-SDRAM 800 W
DellModel EMEA_PROMO_R670_SPL1
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compatible operating systems
- Canonical Ubuntu Server LTSRedHat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXiWindows ServerWindows Server Datacenter
- Packaging content
- Riser Config 6
- Special features
- 1x16 OCP, 1x8/x16 OCP Hot Aisle
- Ethernet LAN (RJ-45) ports
- 1
Overview
DELL PowerEdge R670 server 480 GB Rack (1U) Intel Xeon 6 6505P 2.2 GHz 64 GB DDR5-SDRAM 800 W is a Dell workstations & server with a ethernet lan (rj-45) ports of 1 and a 80 plus certification of 80 PLUS Titanium. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 1. 80 PLUS certification is 80 PLUS Titanium. Total carbon footprint (kg of CO2e) is 4004. Total carbon emissions, standard deviation (kg of CO2e) is 329. Carbon emissions, manufacturing (kg of CO2e) is 476.48. Carbon emissions, logistics (kg of CO2e) is 136.14. Carbon emissions, energy usage (kg of CO2e) is 3367.36. Carbon emissions, end-of-life (kg of CO2e) is 24.02. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compatible operating systems | Canonical Ubuntu Server LTSRedHat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXiWindows ServerWindows Server Datacenter |
|---|---|
| Packaging content | Riser Config 6 |
| Special features | 1x16 OCP, 1x8/x16 OCP Hot Aisle |
| Ethernet LAN (RJ-45) ports | 1 |
| Power supply input voltage | 100 - 240 V |
|---|---|
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Thermal Design Power (TDP) | 150 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Total carbon footprint (kg of CO2e) | 4004 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 329 |
| Carbon emissions, manufacturing (kg of CO2e) | 476.48 |
| Carbon emissions, logistics (kg of CO2e) | 136.14 |
| Carbon emissions, energy usage (kg of CO2e) | 3367.36 |
| Carbon emissions, end-of-life (kg of CO2e) | 24.02 |
| PAIA version | PAIA 1.4.2, 2024 |
| Width | 482 mm |
|---|---|
| Height | 42.8 mm |
| RAID support | Yes |
|---|
| Ethernet LAN | Yes |
|---|
| Target workload | Mixed Use (MU) |
|---|---|
| Drive writes per day (DWPD) | 3 |
| PCI Express x16 (Gen 5.x) slots | 2 |
|---|
| Operating system installed | No |
|---|
| Total storage capacity | 480 GB |
|---|---|
| Number of SSDs supported | 8 |
| Supported RAID controllers | PERC H965i Controller |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Optical drive type | No |
| Hot-Plug support | Yes |
| Internal memory | 64 GB |
|---|---|
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 6400 MHz |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 32x DIMM |
| Maximum internal memory | 8 TB |
| Memory ranking | 2 |
| Supported SSD sizes | 2.5" |
|---|---|
| Bytes per sector | 512e |
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Data transfer rate | 6 Gbit/s |
| Power cables quantity | 2 |
| Chassis type | Rack (1U) |
|---|---|
| Product colour | Grey |
| Rack rails | Yes |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Xeon 6 |
| Processor model | 6505P |
| Processor cores | 12 |
| Processor threads | 24 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.2 GHz |
| System bus rate | 24 GT/s |
| Processor cache | 48 MB |
| Number of processors installed | 1 |
