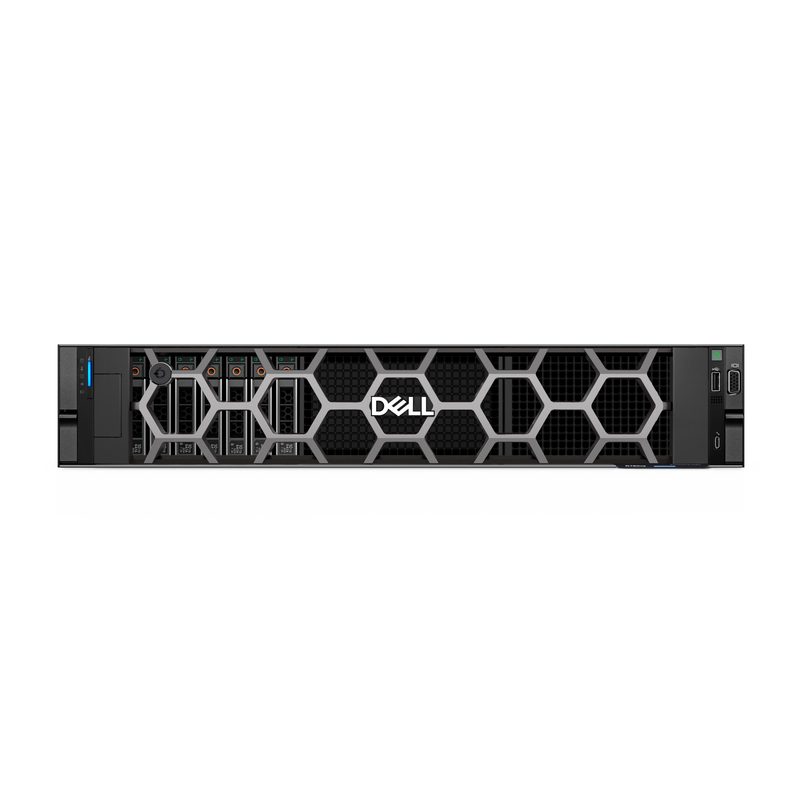

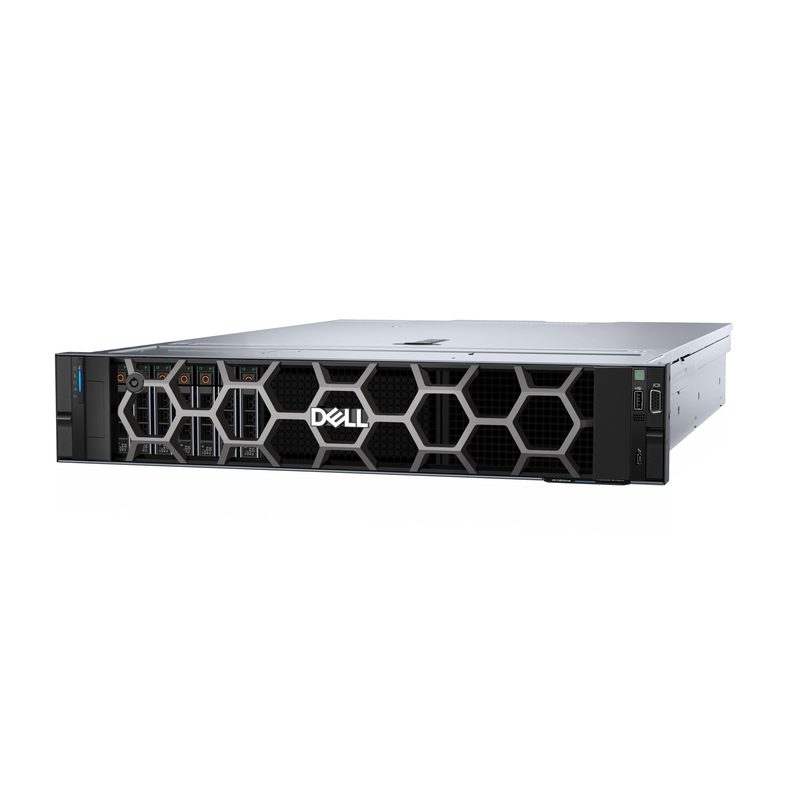

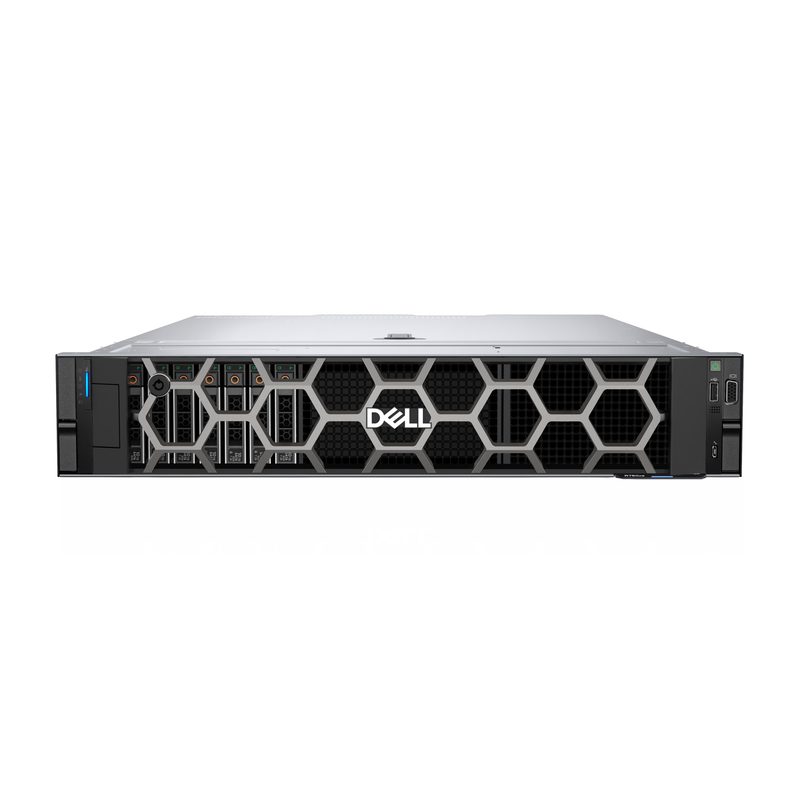

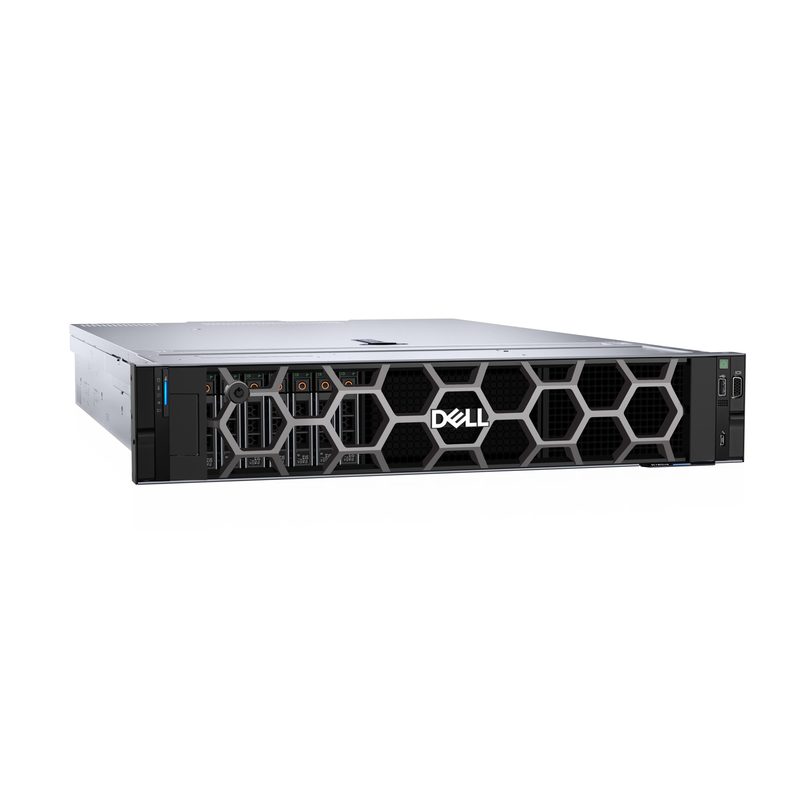

DELL PowerEdge R760xs server 2.4 TB Rack (2U) Intel Xeon Silver 4509Y 2.6 GHz 16 GB DDR5-SDRAM 800 W
DellModel 210-BHTJ-XK1R
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compatible operating systems
- Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi
- Packaging content
- Riser Config 2, Half Length, Low Profile, 1x16 + 1x8 + 2x8 (Gen5)
- HDD size
- 2.5"
- Ethernet LAN (RJ-45) ports
- 2
Overview
DELL PowerEdge R760xs server 2.4 TB Rack (2U) Intel Xeon Silver 4509Y 2.6 GHz 16 GB DDR5-SDRAM 800 W is a Dell workstations & server with a open compute project (ocp) of NIC 3.0 and a ethernet lan (rj-45) ports of 2. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Open Compute Project (OCP) is NIC 3.0. Ethernet LAN (RJ-45) ports is 2. Compatible operating systems is Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi. Packaging content is Riser Config 2, Half Length, Low Profile, 1x16 + 1x8 + 2x8 (Gen5). Power supply is 800 W. Memory data transfer rate is 5600 MT/s. HDD size is 2.5". Data transfer rate is 12 Gbit/s. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
|---|---|
| Packaging content | Riser Config 2, Half Length, Low Profile, 1x16 + 1x8 + 2x8 (Gen5) |
| HDD size | 2.5" |
| Ethernet LAN (RJ-45) ports | 2 |
| Open Compute Project (OCP) | NIC 3.0 |
| Buffered memory type | Registered (buffered) |
|---|
| Redundant power supply (RPS) support | Yes |
|---|---|
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power supply | 800 W |
| Width | 482 mm |
|---|---|
| Height | 86.8 mm |
| Storage temperature (T-T) | -40 - 65 °C |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Number of HDDs supported | 16 |
|---|---|
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Remote administration | iDRAC9, Enterprise 16G + OME Advanced |
|---|---|
| Bytes per sector | 512n |
| Motherboard chipset | Intel C741 |
| VGA (D-Sub) ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Data transfer rate | 12 Gbit/s |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Broadcom 57416 |
| Operating system installed | No |
|---|
| Total storage capacity | 2.4 TB |
|---|---|
| Supported RAID controllers | PERC H755 |
| Supported HDD sizes | 2.5" |
| Number of HDDs installed | 2 |
| HDD capacity | 1.2 TB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 10000 RPM |
| Optical drive type | No |
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 1 TB |
| Memory ranking | 1 |
| Memory data transfer rate | 5600 MT/s |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Xeon Silver |
| Processor model | 4509Y |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.6 GHz |
| Processor cache | 22.5 MB |
| Number of processors installed | 1 |
| Chassis type | Rack (2U) |
|---|---|
| Product colour | Black |
| Bezel | Yes |
