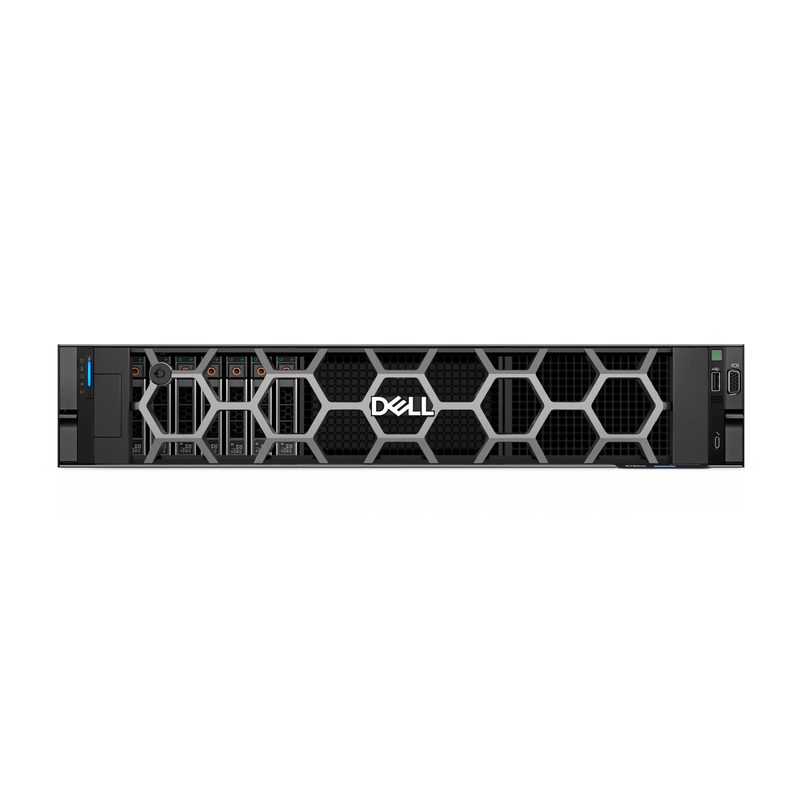

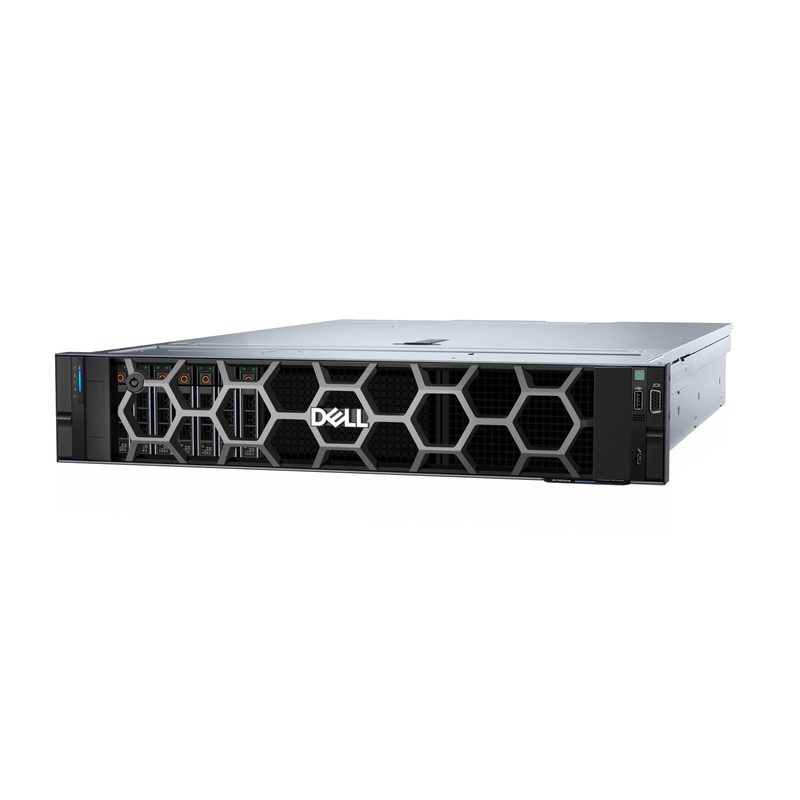

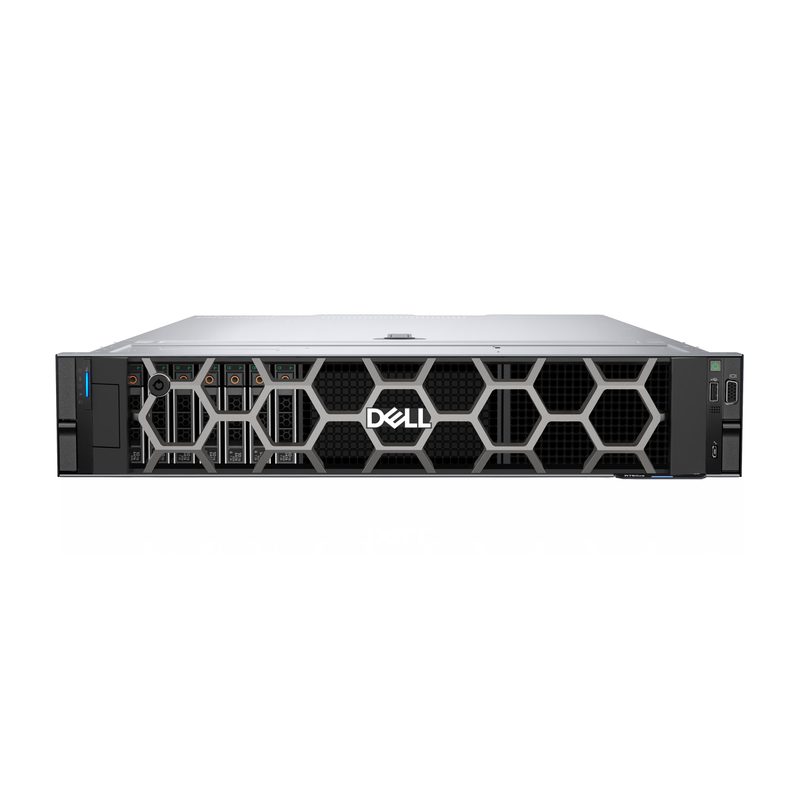

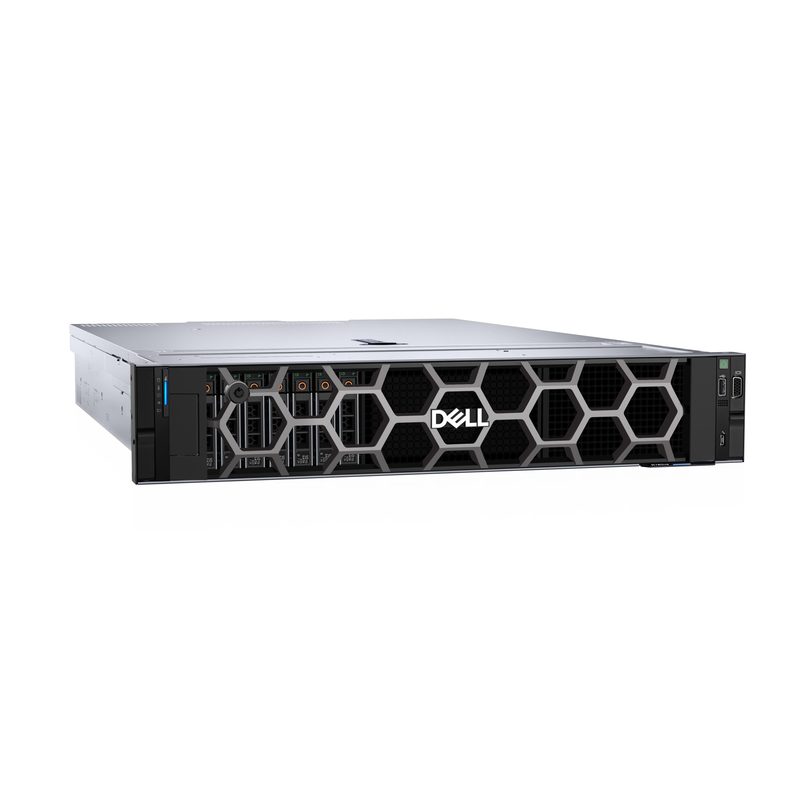

DELL PowerEdge R760XS server 4 TB Rack (2U) Intel Xeon Silver 4509Y 2.6 GHz 16 GB DDR5-SDRAM 800 W
DellModel 210-BHTJ-YOSQ
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compatible operating systems
- Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi
- HDD size
- 3.5"
- Ethernet LAN (RJ-45) ports
- 2
- Total carbon footprint (kg of CO2e)
- 6654
Overview
DELL PowerEdge R760XS server 4 TB Rack (2U) Intel Xeon Silver 4509Y 2.6 GHz 16 GB DDR5-SDRAM 800 W is a Dell workstations & server with a raid controller cache of 8 GB and a i/o ports of Riser Config 2, Half Length, Low Profile, 1x16 + 1x8 + 2x8 (Gen5). The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
RAID controller cache is 8 GB. I/O ports is Riser Config 2, Half Length, Low Profile, 1x16 + 1x8 + 2x8 (Gen5). Ethernet LAN (RJ-45) ports is 2. Total carbon footprint (kg of CO2e) is 6654. Total carbon emissions, standard deviation (kg of CO2e) is 3747. Carbon emissions, manufacturing (kg of CO2e) is 465.78. Carbon emissions, logistics (kg of CO2e) is 133.08. Carbon emissions, energy usage (kg of CO2e) is 6055.14. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
|---|---|
| HDD size | 3.5" |
| Ethernet LAN (RJ-45) ports | 2 |
| Total carbon footprint (kg of CO2e) | 6654 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 3747 |
| Carbon emissions, manufacturing (kg of CO2e) | 465.78 |
| Carbon emissions, logistics (kg of CO2e) | 133.08 |
| Carbon emissions, energy usage (kg of CO2e) | 6055.14 |
| Carbon emissions, end-of-life (kg of CO2e) | 0 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 598.86 |
| PAIA version | 1.3.2, 2022 |
| Buffered memory type | Registered (buffered) |
|---|
| Power supply input voltage | 100 - 240 V |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power supply | 800 W |
| Thermal Design Power (TDP) | 150 W |
| Width | 482 mm |
|---|---|
| Height | 86.8 mm |
| Weight | 28.6 kg |
| Storage temperature (T-T) | -40 - 65 °C |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Number of HDDs supported | 8 |
|---|---|
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Remote administration | iDRAC9 Enterprise |
|---|---|
| Motherboard chipset | Intel C741 |
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Broadcom 57416 |
| Operating system installed | No |
|---|
| Total storage capacity | 4 TB |
|---|---|
| SSD size | 2.5" |
| Supported RAID controllers | PERC H755 |
| Supported HDD sizes | 3.5" |
| Number of HDDs installed | 2 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| Optical drive type | No |
| Hot-Plug support | Yes |
| RAID controller cache | 8 GB |
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory supported by processor | 512 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 1 TB |
| Memory ranking | 1 |
| Memory data transfer rate | 5600 MT/s |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Xeon Silver |
| Processor model | 4509Y |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.6 GHz |
| Processor cache | 22.5 MB |
| Number of processors installed | 1 |
| VGA (D-Sub) ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Power cables quantity | 2 |
| I/O ports | Riser Config 2, Half Length, Low Profile, 1x16 + 1x8 + 2x8 (Gen5) |
| Chassis type | Rack (2U) |
|---|---|
| Product colour | Black |
| Rack rails | Yes |
| Bezel | Yes |
