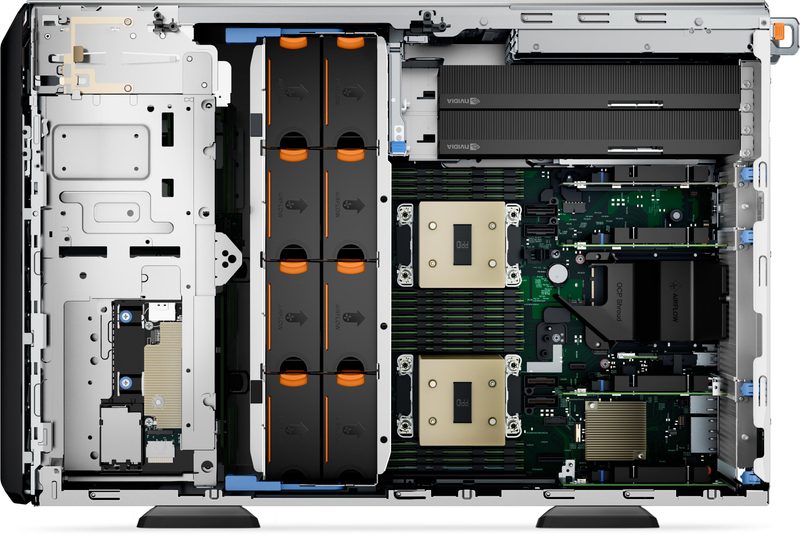

DELL PowerEdge T560 server 960 GB Tower (4.5U) Intel Xeon Silver 4514Y 2 GHz 64 GB DDR5-SDRAM 1100 W
DellModel 6HX02
Image 1 of 5
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Supported RAID configuration
- Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Compatible operating systems
- Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
- Packaging content
- Riser Config0 European Power Cord 220V Two Layer Door Blank Filler Only Parallax Security Bezel
- Ethernet LAN (RJ-45) ports
- 2
Overview
DELL PowerEdge T560 server 960 GB Tower (4.5U) Intel Xeon Silver 4514Y 2 GHz 64 GB DDR5-SDRAM 1100 W is a Dell workstations & server with a supported raid configuration of Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) and a storage drive adapter type of 2.5" - 3.5". The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Supported RAID configuration is Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed). Storage drive adapter type is 2.5" - 3.5". Storage drive adapter included is Yes. Ethernet LAN (RJ-45) ports is 2. 80 PLUS certification is 80 PLUS Titanium. Total carbon footprint (kg of CO2e) is 5989. Total carbon emissions, standard deviation (kg of CO2e) is 3189. Carbon emissions, manufacturing (kg of CO2e) is 419.23. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Warranty: 3 Years Basic Onsite. Ask us if you need a different configuration - we quote against the specification you actually need rather than the one on the box.
Specifications
| Supported RAID configuration | Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) |
|---|
| Compatible operating systems | Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
|---|---|
| Packaging content | Riser Config0 European Power Cord 220V Two Layer Door Blank Filler Only Parallax Security Bezel |
| Ethernet LAN (RJ-45) ports | 2 |
| Total carbon footprint (kg of CO2e) | 5989 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 3189 |
| Carbon emissions, manufacturing (kg of CO2e) | 419.23 |
| Carbon emissions, logistics (kg of CO2e) | 299.45 |
| Carbon emissions, energy usage (kg of CO2e) | 5210.43 |
| Carbon emissions, end-of-life (kg of CO2e) | 59.89 |
| PAIA version | PAIA 1.3.2, 2022 |
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Redundant power supply (RPS) support | Yes |
|---|---|
| Number of redundant power supplies installed | 2 |
| Power supply | 1100 W |
| Thermal Design Power (TDP) | 150 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Width | 200 mm |
|---|
| Remote administration | iDRAC9, Enterprise 16G |
|---|---|
| Supported SSD sizes | 3.5" |
| Bytes per sector | 512e |
| Motherboard chipset | Intel C741 |
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Data transfer rate | 6 Gbit/s |
| Buffered memory type | Registered (buffered) |
|---|---|
| Target workload | Read Intensive (RI) |
| Drive writes per day (DWPD) | 1 |
| Operating system installed | No |
|---|
| Total storage capacity | 960 GB |
|---|---|
| SSD size | 2.5" |
| Number of SSDs supported | 8 |
| Supported RAID controllers | Front PERC H755 Front Load |
| Number of SSDs installed | 1 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| Optical drive type | No |
| Hot-Plug support | Yes |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
| Internal memory | 64 GB |
|---|---|
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 4400 MHz |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 1 TB |
| Memory ranking | 2 |
| Memory data transfer rate | 5600 MT/s |
| Chassis type | Tower (4.5U) |
|---|---|
| Product colour | Black |
| Bezel | Yes |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Xeon Silver |
| Processor model | 4514Y |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor boost frequency | 3.4 GHz |
| Processor frequency | 2 GHz |
| System bus rate | 16 GT/s |
| Processor cache | 30 MB |
| Number of processors installed | 1 |
Warranty
3 Years Basic Onsite
