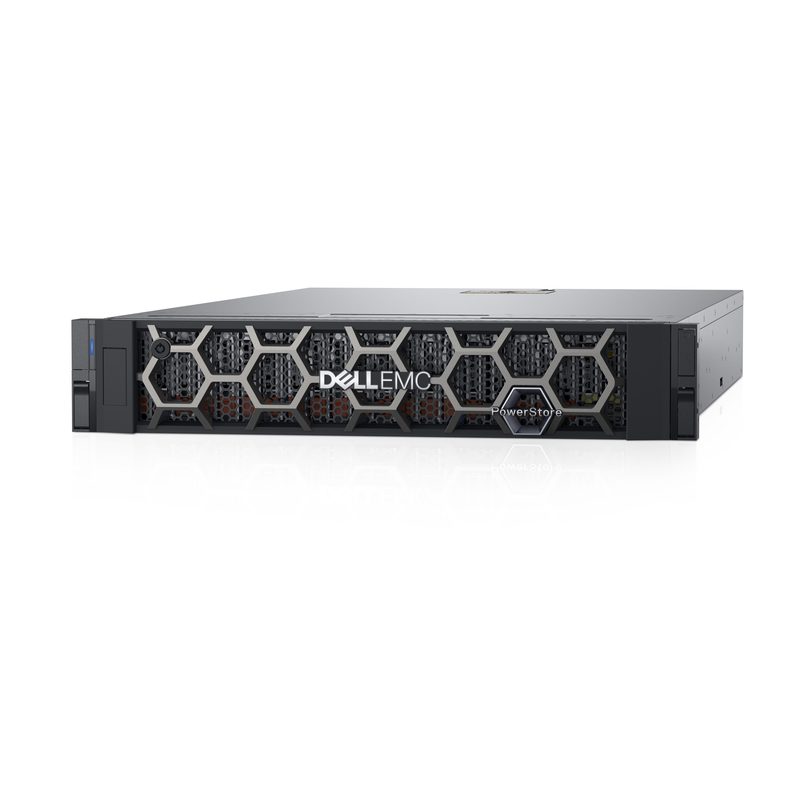

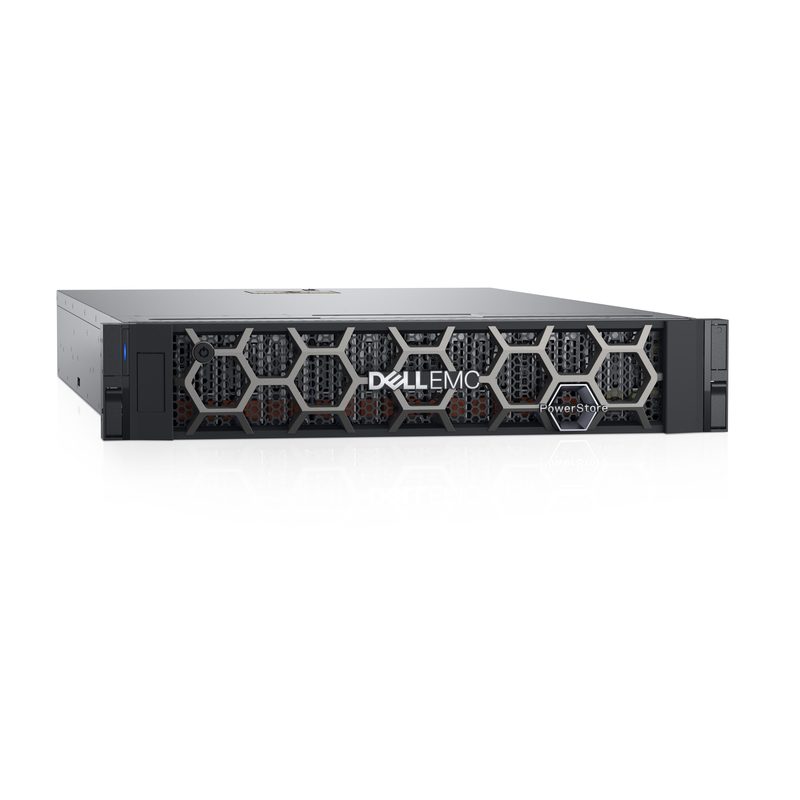

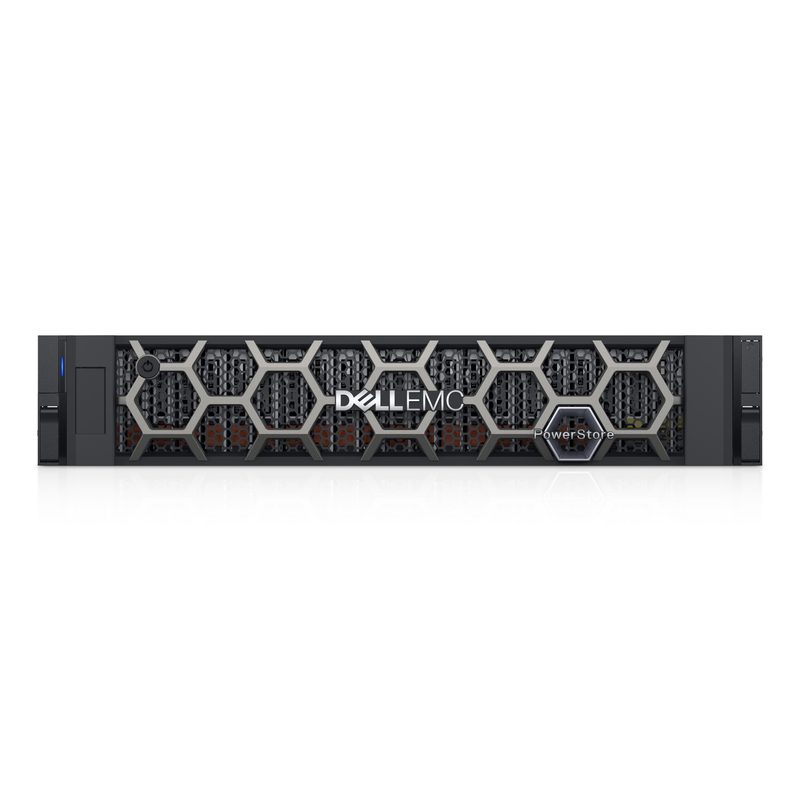

DELL PowerStore 1200T Storage server Rack (2U) Intel® Xeon® 46.08 TB SSD Black
DellModel PS1200-FY26Q2
Image 1 of 4
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Compliance certificates
- RoHS
- Packaging content
- PowerStore Base Enclosure Install Kit
- Fibre Channel
- Yes
- Ethernet LAN data rates
- 10000 Mbit/s
Overview
DELL PowerStore 1200T Storage server Rack (2U) Intel® Xeon® 46.08 TB SSD Black is a Dell workstations & server with a number of drives (max) of 93 and a number of nvram drives of 2. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Number of drives (max) is 93. Number of NVRAM drives is 2. Quantity of mezzanine cards (max) is 2. Management protocols is FC, NVMe/FC, iSCSI, NVMe/TCP,NFSv3, NFSv4, NFSv4.1; CIFS (SMB 1), SMB 2, SMB 3.0, SMB 3.02, and SMB 3.1.1; FTP and SFTP. Backup function is Yes. Ethernet LAN data rates is 10000 Mbit/s. Bundled software is PowerStore Base SW. Compliance certificates is RoHS. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Compliance certificates | RoHS |
|---|---|
| Packaging content | PowerStore Base Enclosure Install Kit |
| Fibre Channel | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Bundled software | PowerStore Base SW |
|---|
| Width | 447.2 mm |
|---|---|
| Depth | 795.5 mm |
| Height | 87.2 mm |
| Weight (empty) | 35.8 kg |
| Management protocols | FC, NVMe/FC, iSCSI, NVMe/TCP,NFSv3, NFSv4, NFSv4.1; CIFS (SMB 1), SMB 2, SMB 3.0, SMB 3.02, and SMB 3.1.1; FTP and SFTP |
|---|
| Total carbon footprint (kg of CO2e) | 16589 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 8945 |
| Carbon emissions, manufacturing (kg of CO2e) | 1824.79 |
| Carbon emissions, logistics (kg of CO2e) | 331.78 |
| Carbon emissions, energy usage (kg of CO2e) | 14432.43 |
| Carbon emissions, end-of-life (kg of CO2e) | 0 |
| PAIA version | 1.3.2, 2022 |
| Power supply location | Built-in |
|---|
| Backup function | Yes |
|---|
| RAID support | No |
|---|
| Type | Storage server |
|---|
| AC input voltage | 200 - 240 V |
|---|---|
| AC input frequency | 47 - 63 Hz |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 1800 W |
| Redundant power supply (RPS) support | Yes |
| Ethernet LAN | Yes |
|---|---|
| Copper ethernet cabling technology | 10GBASE-T |
| Fiber optic connector | SFP |
|---|---|
| Fiber ports quantity | 4 |
| Chassis type | Rack (2U) |
|---|---|
| Device class | Large Enterprise Business |
| Product colour | Black |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® |
| Processor cores | 40 |
| Processor frequency | 2.4 GHz |
| Memory form factor | DIMM |
|---|---|
| Maximum RAM supported | 384 GB |
| Installed storage drive type | SSD |
|---|---|
| Total installed storage capacity | 46.08 TB |
| Maximum supported storage capacity | 6041.6 TB |
| Storage drive capacity | 7.68 TB |
| Supported storage drive types | SSD |
| Storage drive sizes supported | 2.5" |
| Number of storage drives supported | 21 |
| Number of storage drives installed | 6 |
| NVMe | Yes |
| Mezzanine card | Yes |
| Number of drives (max) | 93 |
| Number of NVRAM drives | 2 |
| Quantity of mezzanine cards (max) | 2 |
