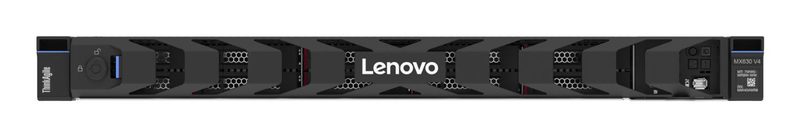

Lenovo ThinkAgile MX630 V4 server 4.32 TB Rack (1U) Intel® Xeon® 6515P 2.3 GHz 64 GB DDR5-SDRAM 1300 W
LenovoModel 7DFGCTO1WW
Image 1 of 2
Available on lead time
Request a quote for pricing
We respond within one business day. Volume pricing available.
Nationwide delivery, installed in Lagos. Lead times Manufacturer warranty, claims handled by us. How it works Authorised reseller, certified by the Standards Organisation of Nigeria. Buying in volume? Send the schedule and we price the whole list.
At a glance
- Cooling type
- Active
- Chassis type
- Rack (1U)
- Product colour
- Black
- Redundant fans support
- Yes
Overview
Lenovo ThinkAgile MX630 V4 server 4.32 TB Rack (1U) Intel® Xeon® 6515P 2.3 GHz 64 GB DDR5-SDRAM 1300 W is a Lenovo workstations & server with a ethernet lan (rj-45) ports of 1 and a 80 plus certification of 80 PLUS Titanium. The details below are drawn from the manufacturer specification and are what to check against your own requirement before requesting a quote.
Ethernet LAN (RJ-45) ports is 1. 80 PLUS certification is 80 PLUS Titanium. Power supply is 1300 W. Redundant fans support is Yes. Optical drive type is No. Power cable current is 13 A. Power cable connector 2 is C14 coupler. Power cable connector 1 is C13 coupler. Each of these is listed again in the specification table, so nothing here has to be taken on trust.
Specifications
| Cooling type | Active |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Redundant fans support | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Internal drive bays | 10 |
|---|
| Width | 440 mm |
|---|---|
| Depth | 788 mm |
| Height | 43 mm |
| Weight | 20.2 kg |
| RAID support | Yes |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Power supply input voltage | 115 - 230 V |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power cable length | 2.8 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 13 A |
| Power supply | 1300 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Total storage capacity | 4.32 TB |
|---|---|
| SSD size | 2.5", M.2 |
| Number of SSDs installed | 2 |
| NVMe | Yes |
| Optical drive type | No |
| Hot-swap | Yes |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Internal memory | 64 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 6400 MHz |
| Maximum internal memory | 8 TB |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® |
| Processor model | 6515P |
| Processor cores | 16 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 2.3 GHz |
| Processor cache | 72 MB |
